CHL-6 LED Luminous Intensity Distribution Tester


产品性能

○ Angle range:-90°~+90°
○ Range of luminous intensity: 0mcd~3000cd

  • 产品介绍
  • 产品参数
  • 产品特征
  • 工作原理
  • 满足标准
  • 适用范围

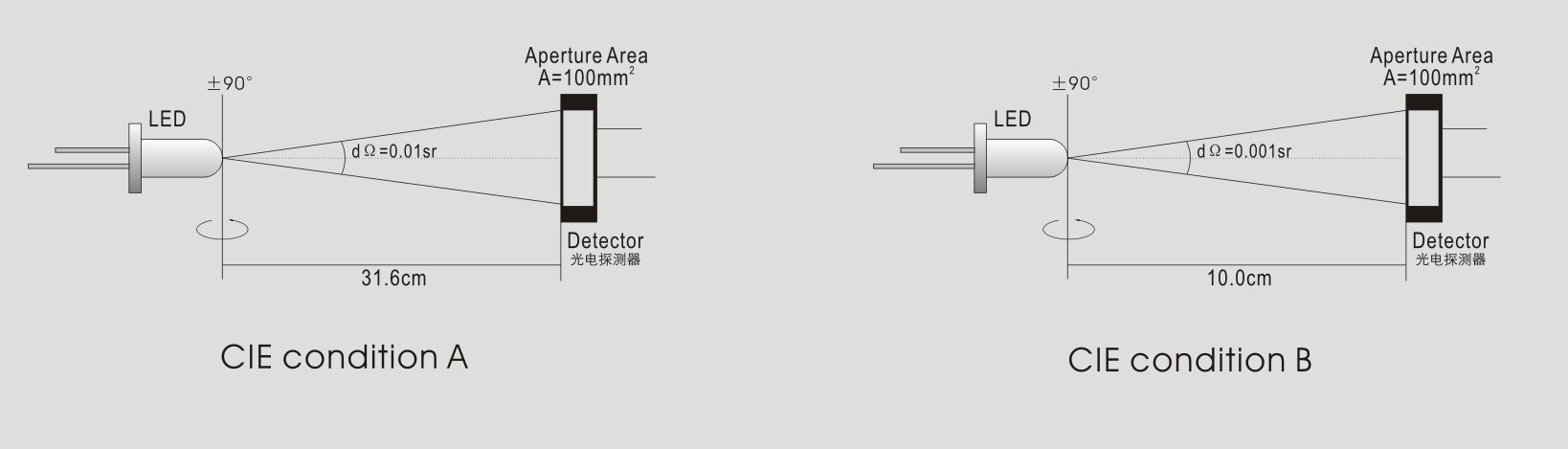

    It is designed to metasure the photoelectric parameters such as the LED luminous intensity curve,spread angle of light beam,center intensity ,forward voltage,reserved current,reserved breakdown voltage etc.It meets the condition A or B in CIB pub.NO.127.

    > Forward voltage(Vf): 0.01V~20.00V

    > Forwardcurrent(lf):0.1mA~400.0mA

    > Reversed testing voltage:0.01V~20.0V

    > Reversedcurrent(Ir):0.1μA~200.0μA
    > Reversed breakdown voltage(Vz):0.1V~200.0V
    > Spread angle of light beam: θ(25%)(50%)(75%)

    > Center Intensity:I。
    > Peak Intensity:IP
    > Angle of deviation:Δθ
    > Range of luminous intensity: 0mcd~3000cd

    > Accuracy of luminous intensity: class 1

    > Angle range:-90°~+90°

    > Angle accuracy:±0.2°
    > Measuring angle interval: 0.5°/1°/1.5°
    > Range of equivalent luminous flux: 0.1lm~200.0lm
    > Draw luminous intensity distribution curve automatically(polar and rectangular coordinates)

    CHL-6 工作原理.jpg
