Light is an electromagnetic wave. Its visible light wavelength is 380nm-780nm with special wavelength. 200nm-380nm is near ultraviolet rays and below than it is far ultraviolet rays. Since the far ultraviolet only can be transmitted in a vacuum, it has a special significance to test 200nm-380nm when we want to test ultraviolet rays.

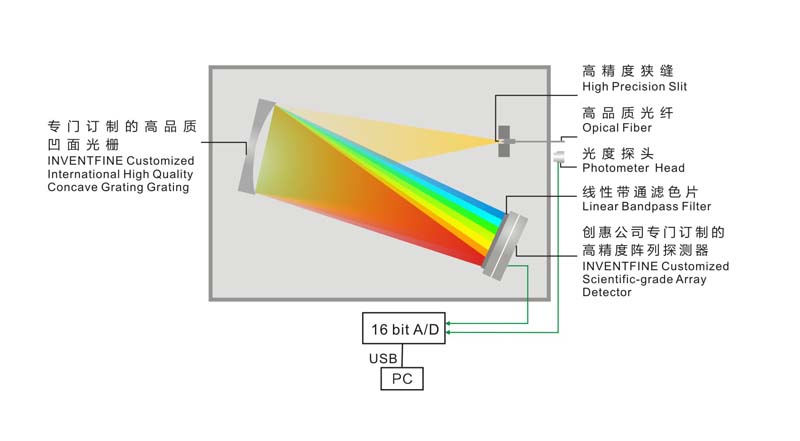

CMS-3000S(UV) fast spectral analysis system(UV) adopts the international most advanced holographic concave grating spectral technique. Its optical path design is unique with extremely low stray light.

Test Parameters

a) Relative spectral power distribution P(λ)

b) UV irradiance  (UV radiation flux) UV UVA,UVB,UVC,Photochemistry of skin and eyes ultraviolet radiation  EsNear UV radiation illuminance of eye Euva

c) Peak wavelength, Half width

d) Environment temperature

>Measured wavelength range:200nm-400nm (Near UV )

>Wavelength accuracy:±0.5nm  repeatability :±0.2nm

>Linear Radiation: ±0.5%

>Radiometric accuracy: Class 1

>Requirements of working environment:

  a) working environment temperature: 0 ~ 35℃

  b) optimum temperature for normal measurements of : 25 ±2 ℃

  c) relative humidity: less than 80% ( without dew, recommended to install dehumidify machine )
